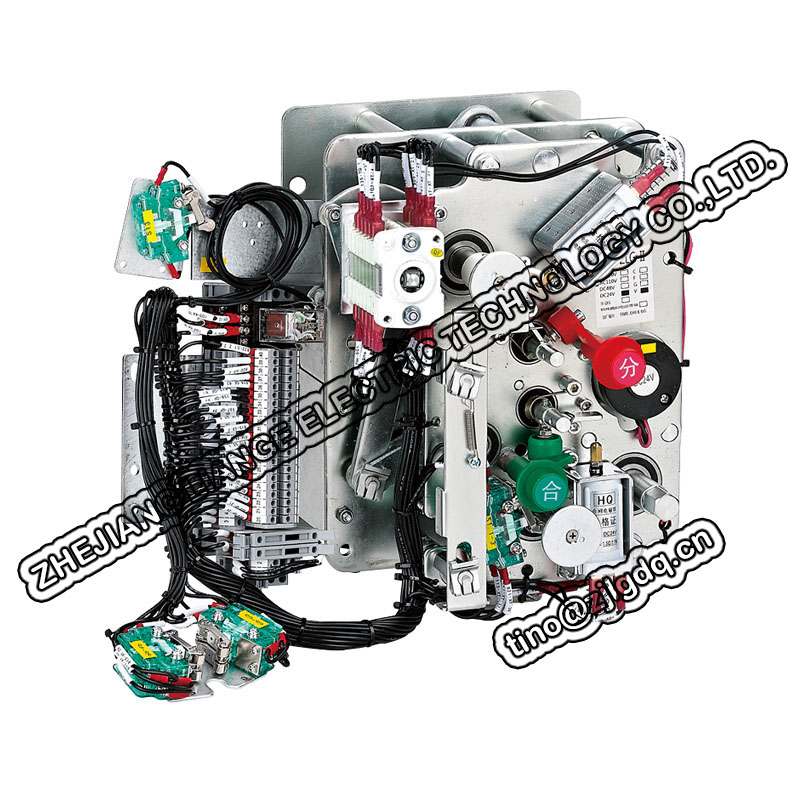

The spring-operated mechanism, comprising an energy storage unit, switching control module, transmission assembly, and safety interlock devices, utilizes spring energy storage to achieve rapid switching operations. A typical mechanism includes approximately 200 precision components, with the following operational principles:
1. Energy Storage & Release
o Charging Phase: A geared motor drives a cam system to compress the closing spring, converting mechanical energy into elastic potential energy.
o Closing Operation: Release of the closing spring energy drives the disconnect switch to close via linkage mechanisms.
o Tripping Operation: Pre-charged tripping spring rapidly separates contacts upon activation.
2. Control Logic
o Solenoid coils manage energy state transitions, with limit switches monitoring spring positioning.
o Kinetic energy relies solely on mechanical storage, ensuring immunity to power supply fluctuations.
Key Advantages
1. Low Standby Consumption: Standby current ≤5mA, eliminating continuous high-power demand.
2. Multi-mode Operation:
o Remote electric charging/switching
o Local manual charging/switching (emergency operation without power)
3. Transient Immunity: Closing time ≤60ms with ≥99.9% reclosing success rate, unaffected by grid transients.
4. High Compatibility:
o Dual AC/DC power adaptation (motor power ≤200W)
o Modular spring kits compatible with breakers from 630A to 4000A
5. Maintenance-free Design: Critical component lifespan ≥10,000 mechanical operations.
Technical Challenges & Enhancements
1. Manufacturing Complexity:
o Dimensional tolerance: IT7 grade
o Heat treatment: Spring steel requires 42HRC~48HRC case hardening
2. Reliability Optimization:
o Common failure: Motor burnout due to incomplete charging past dead center
o Mitigation: Hall-effect sensors for real-time cam angle monitoring
3. False Trip Prevention:
o Mechanical interlocks to prevent unintended switching
o Dual-coil latching relays to reduce spurious tripping
4. Environmental Robustness:
o Operating temperature: -40°C~+70°C
o Protection rating: IP67 (dust/water resistant)
